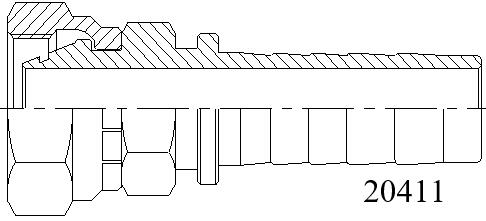

公制內螺紋24 °錐帶O型圈輕系列
METRIC FEMALE24 °CONE O-RING L.T
ISO 12151-2----DIN 3865
| 代號 PART NO. | 螺紋 | 膠管HOSE BORE | 管子外徑 | O 形圈 | 尺寸 DIMENSIONS | |||
| THREADE | 公稱內徑DN | 標號DASH | TUBE O.D. | ORING | A | C | S2 | |
| 20411-12-04 | M12X1.5 | 6 | 04 | 6 | 004.5X1.5 | 26 | 1 | 17 |
| 20411-14-04 | M14X1.5 | 6 | 04 | 8 | 006.5X1.5 | 27.5 | 2 | 19 |
| 20411-14-06 | M14X1.5 | 10 | 06 | 8 | 006.5X1.5 | 27.5 | 2 | 19 |
| 20411-16-04 | M16X1.5 | 6 | 04 | 10 | 008.0X1.5 | 28 | 2 | 22 |
| 20411-16-05 | M16X1.5 | 8 | 05 | 10 | 008.0X1.5 | 28 | 2 | 22 |
| 20411-16-06 | M16X1.5 | 10 | 06 | 10 | 008.0X1.5 | 28 | 2 | 22 |
| 20411-18-05T | M18X1.5 | 8 | 05 | 12 | 010.0X1.5 | 24.5 | 1.5 | 22 |
| 20411-18-06 | M18X1.5 | 10 | 06 | 12 | 010.0X1.5 | 29 | 2.5 | 24 |
| 20411-18-08 | M18X1.5 | 12 | 08 | 12 | 010.0X1.5 | 29.5 | 2.5 | 24 |
| 20411-22-05T | M22X1.5 | 8 | 05 | 15 | 012.0X2.0 | 26.5 | 3 | 27 |
| 20411-22-06T | M22X1.5 | 10 | 06 | 15 | 012.0X2.0 | 26.5 | 3 | 27 |
| 20411-22-08 | M22X1.5 | 12 | 08 | 15 | 012.0X2.0 | 32 | 2.5 | 27 |
| 20411-26-10 | M26X1.5 | 16 | 10 | 18 | 015.0X2.0 | 34.5 | 2.5 | 32 |
| 20411-26-12 | M26X1.5 | 20 | 12 | 18 | 015.0X2.0 | 35 | 2.5 | 32 |
| 20411-27-1OT | M27X1.5 | 16 | 10 | 18 | 015.0X2.0 | 35 | 2.1 | 32 |
| 20411-27-12 | M27X1.5 | 20 | 12 | 18 | 015.0X2.0 | 35 | 2.5 | 32 |
| 20411-30-1 OT | M30X2 | 16 | 10 | 22 | 020.0X2.0 | 31 | 3.8 | 36 |
| 20411-30-12 | M30X2 | 20 | 12 | 22 | 020.0X2.0 | 39 | 4 | 36 |
| 20411-36-12T | M36X2 | 20 | 12 | 28 | 026.0X2.0 | 33 | 4.5 | 46 |
| 20411-36-14T | M36X2 | 22 | 14 | 28 | 026.0X2.0 | 33 | 4.5 | 46 |
| 20411-45-16T | M45X2 | 25 | 16 | 35 | 032.0X2.5 | 37 | 4 | 55 |
| 20411-45-20T | M45X2 | 32 | 20 | 35 | 032.0X2.5 | 37.5 | 4 | 55 |
| 20411-52-20T | M52X2 | 32 | 20 | 42 | 038.0X2.5 | 38.5 | 4 | 60 |
| 20411-52-24T | M52X2 | 40 | 24 | 42 | 038.0X2.5 | 38.5 | 4 | 60 |
| 注：1.表中代號用于編織軟管 2 如需用于纏繞軟管代號改為20412-xx-xx. | ||||||||
