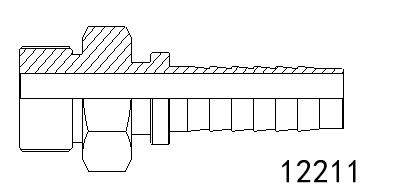

英管外螺紋O型圈密封
BSP MALE O-RING SEAL
| 代號 PART NO. | 鍵紋E THREADE | 膠 管 HOSE BORE | 0形圈 | 尺寸DIM | ENSIONS | ||
| 公稱內徑DN | 標號DASH | O-RING | A | C | S1 | ||
| 12211-04-04 | G1/4″-X19 | 6 | 04 | 0111 | 23.5 | 11 | 19 |
| 12211-04-06 | G1/4″X19 | 10 | 06 | 0111 | 23.5 | 11 | 19 |
| 12211-06-06 | G3/8″X19 | 10 | 06 | 0113 | 26.5 | 12 | 22 |
| 12211-08-04 | G1/2″X14 | 6 | 04 | 0115 | 33.5 | 14 | 27 |
| 12211-08-06 | G1/2″X14 | 10 | 06 | 0115 | 33.5 | 14 | 27 |
| 12211-08-08 | G1/2″X14 | 12 | 08 | 0115 | 34 | 14 | 27 |
| 12211-10-10 | G5/8″X14 | 16 | 10 | 0910 | 36 | 15.5 | 30 |
| 12211-12-10 | G3/4″-X14 | 16 | 10 | 0119 | 33.5 | 15.5 | 32 |
| 12211-12-12 | G3/4″X14 | 20 | 12 | 0119 | 38 | 15.5 | 32 |
| 12211-12-16 | G3/4″-X14 | 25 | 16 | 0119 | 36 | 15.5 | 32 |
| 12211-16-16 | G1″X11 | 25 | 16 | 0217 | 44.5 | 18.5 | 41 |
| 12211-20-20 | G1.1/4″X11 | 32 | 20 | 0222 | 46 | 20 | 50 |
