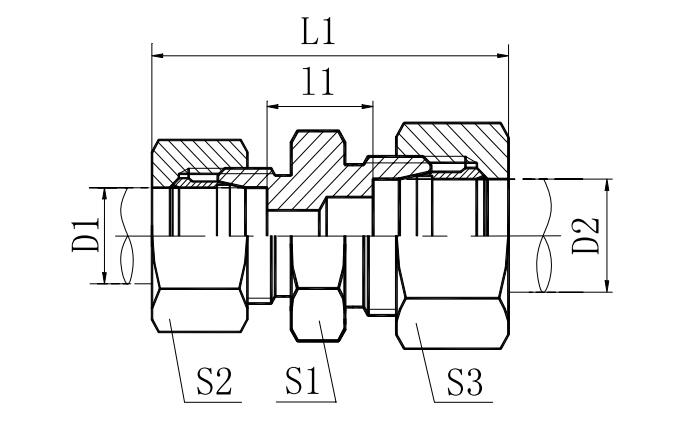

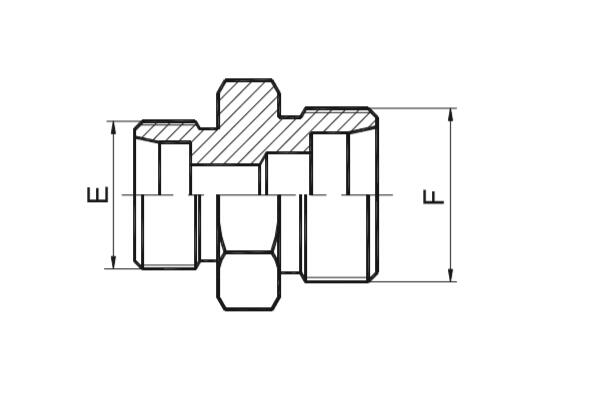

1C /1D 直通接頭 STRAOGHT FITTINGS
| 系列 | 代號 PART NO. | 螺紋 THREAD | 管子外徑 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 |
工作壓力 (bar) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| E | F | D1、D2 | L1 | L2 | L3 | S1 | S2、S3 | ||||
|
L
|
1C-12
|
M12X1.5
|
M12X1.5
|
06
|
24
|
10
|
39
|
12
|
14
|
12
|
500
|
|
1C-14
|
M14X1.5
|
M14X1.5
|
08
|
25
|
11
|
40
|
14
|
17
|
16
|
500
|
|
|
1C-16
|
M16X1.5
|
M16X1.5
|
10
|
27
|
13
|
42
|
17
|
19
|
23
|
500
|
|
|
1C-18
|
M18X1.5
|
M18X1.5
|
12
|
28
|
14
|
43
|
19
|
22
|
28
|
400
|
|
|
1C-22
|
M22X1.5
|
M22X1.5
|
15
|
30
|
16
|
46
|
24
|
27
|
51
|
400
|
|
|
1C-26
|
M26X1.5
|
M26X1.5
|
18
|
31
|
16
|
48
|
27
|
32
|
69
|
400
|
|
|
1C-30
|
M30X2
|
M30X2
|
22
|
35
|
20
|
52
|
32
|
36
|
90
|
250
|
|
|
1C-36
|
M36X2
|
M36X2
|
28
|
36
|
21
|
54
|
41
|
41
|
137
|
250
|
|
|
1C-45
|
M45X2
|
M45X2
|
35
|
41
|
20
|
63
|
46
|
50
|
214
|
250
|
|
|
1C-52
|
M52X2
|
M52X2
|
42
|
43
|
21
|
66
|
55
|
60
|
296
|
250
|
|
|
S
|
1D-14
|
M14X1.5
|
M14X1.5
|
06
|
30
|
16
|
45
|
14
|
17
|
26
|
800
|
|
1D-16
|
M16X1.5
|
M16X1.5
|
08
|
32
|
18
|
47
|
17
|
19
|
37
|
800
|
|
|
1D-18
|
M18X1.5
|
M18X1.5
|
10
|
32
|
17
|
49
|
19
|
22
|
44
|
800
|
|
|
1D-20
|
M20X1.5
|
M20X1.5
|
12
|
34
|
19
|
51
|
22
|
24
|
60
|
630
|
|
|
1D-22
|
M22X1.5
|
M22X1.5
|
14
|
38
|
22
|
57
|
24
|
27
|
77
|
630
|
|
|
1D-24
|
M24X2
|
M24X2
|
16
|
38
|
21
|
57
|
27
|
30
|
90
|
630
|
|
|
1D-30
|
M30X2
|
M30X2
|
20
|
44
|
23
|
66
|
32
|
36
|
143
|
420
|
|
|
1D-36
|
M36X2
|
M36X2
|
25
|
50
|
26
|
74
|
41
|
46
|
251
|
420
|
|
|
1D-42
|
M42X2
|
M42X2
|
30
|
54
|
27
|
80
|
46
|
50
|
330
|
420
|
|
|
1D-52
|
M52X2
|
M52X2
|
38
|
61
|
29
|
90
|
55
|
60
|
545
|
420
|
|
注：如需帶卡套及卡套螺母整套訂貨，則請在代號后加“RN”，如1C-30/RN。
Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part NO,for example1C-30/RN.
